Embodied Carbon Scoring: How Masterplanners Fold Sustainability KPIs into the First Design Pass

The Urgency

Cities are where the climate battle will be won or lost. The built environment — everything from the buildings to the roads and the gaps between them — accounts for roughly 37% of energy and process related CO₂ emissions, says UNEP. Governments and city administrations are signing net-zero pathways tied to the Paris Agreement; most point to 2050 as the finish line, while 2030 milestones keep getting tougher.

‍

For masterplanners this is not a tweak. It's a rewrite. Sustainability has stopped being a late-stage compliance exercise and become a force that redirects capital, reshapes zoning priorities and feeds investor ESG screens. Institutional players want measurable KPIs. Increasingly, cities demand embodied-carbon disclosure. Portfolios are judged not only on energy bills but on whole-life carbon intensity.

‍

At the district scale, embodied carbon becomes a decisive lever. Operational emissions can be pared back over time with efficiency measures. Embodied carbon, by contrast, is mostly determined the moment you decide where things sit, what they're made of and how compact a place will be.

‍

Why Lifecycle Emissions Are Locked In During Early Design Decisions

Lifecycle studies across buildings and infrastructure tell a consistent story. The majority of a project's carbon footprint is fixed by early design decisions. Once structural systems, road networks, utility corridors, and building typologies are fixed, carbon reduction options narrow dramatically.

‍

At district scale that locking-in effect intensifies. Choices about:

• Street-grid geometry
• Transit alignment
• Structural material strategies
• Infrastructure redundancy, and
• Land-use mix

‍

All impact more than set construction emissions; they shape decades of operational performance as well.

‍

From Reactive Fixes to KPI-Led Design

Traditionally, sustainability arrived late. Façade tweaks, chasing certifications, energy modeling when design was nearly complete. That approach won't cut it anymore. Low-carbon masterplanning treats carbon as a design variable from day one.

‍

In practice that means embedding:

• Early-stage carbon analysis,
• Lifecycle assessment into urban-design workflows,
• Portfolio-level carbon benchmarking, and
• Measurable decarbonization targets into planning

‍

All of these aspects have to be taken into consideration right from within the first plan iteration. Embodied-carbon scoring frameworks let planners handle carbon the way they handle cost, density or mobility — an input to iterate, not a problem to mop up at the end.

‍

What Embodied Carbon Is in Masterplanning

‍

Embodied carbon covers greenhouse-gas emissions tied to extracting, manufacturing, transporting, constructing, maintaining and finally disposing of the materials and infrastructure components.

‍

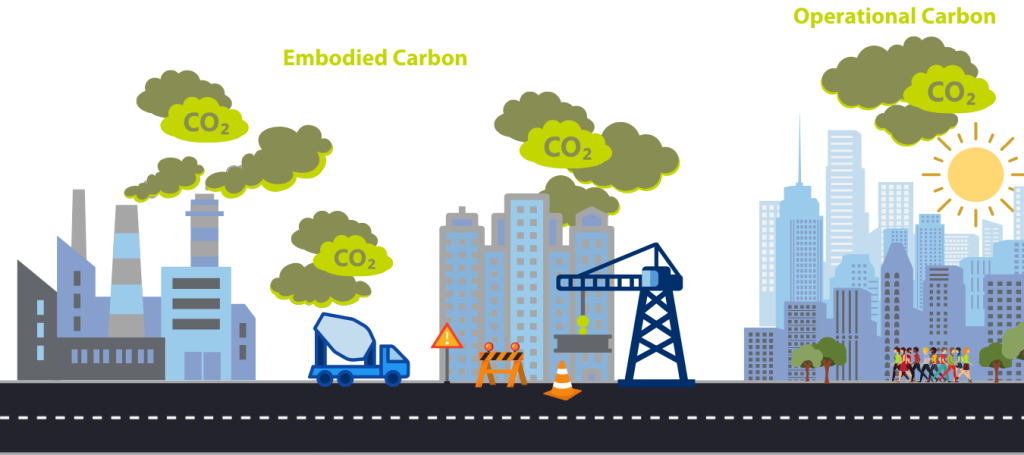

Operational versus Embodied Carbon

In simple terms:

• Operational carbon is emitted during use — heating, cooling, lighting, and equipment.
• Embodied carbon is emitted before and during construction and during future renovations or demolition.

‍

‍

As buildings become more energy efficient, operational emissions fall and embodied carbon becomes a larger share of lifecycle impact. In high-performance districts, embodied carbon can represent 40–60% of total emissions over a 30-50-year horizon.

‍

At masterplanning scale, embodied carbon extends beyond individual buildings to include:

• Roads and pavements,
• Bridges and transit structures,
• Utility networks (water, sewage, power),
• Public-realm materials, and
• Earthworks and site preparation

‍

Why Embodied Carbon Matters at District Scale

Embodied carbon in masterplanning is magnified thanks to the scale and infrastructure intensity. For instance, expanding a road corridor by adding a few lanes in a district may introduce thousands of additional tons of concrete and asphalt. Similarly, underground parking significantly increases the use of reinforced concrete. Infrastructure heavy districts like commercial car parks typically have a higher embodied carbon intensity than transit-oriented, compact developments.

‍

‍

Impact of Transport, Materials and Infrastructure

At a district level, embodied carbon comes from three major components:

• Materials Selection — Materials like concrete, steel and aluminum are very carbon-intensive. On the other hand, materials like timber, recycled aggregates and low-clinker cement can reduce emissions.
• Infrastructure Footprint — Deep foundations, wider roads, and redundant utilities increase material demand.
• Transportation Logistics — Sourcing materials from far off places add transport emissions.

‍

Carbon lifecycle assessment in urban design must take into consideration all three aspects.

‍

Carbon Intensity in Land-Use Decisions

Land-use allocation and decisions have direct carbon implications. For example, a concrete-heavy high-rise district with multi-level parking and podium structure carry very high upfront embodied emissions. On the other hand, a mid-rise, timber-integrated development that does not have as much parking and shared infrastructure lowers carbon intensity.

‍

Transit-oriented development significantly reduces the need for road expansion, decreasing infrastructure-related embodied carbon. The onus is on masterplanners to influence carbon intensity, not just through material choices, but through density strategy, mobility planning and block configuration.

‍

Why Early Design Iteration Is the Critical Window for Carbon Reduction

The initial masterplan establishes a district's structural logic. After that, the scope for change shrinks.

‍

Path Dependency in Planning

Urban planning is path-dependent. Early choices about grid layout, block size and transit corridors set infrastructure needs, which then determine structural systems and material demand. A car-dominant masterplan locks in broad road reserves and parking structures. Converting to a transit-first district later is costly and disruptive.

‍

Density, Massing and Mobility

Density affects both embodied and operational carbon. Tall, dense buildings can reduce land use per person but often raise structural-material intensity. Low-density sprawl spreads infrastructure and increases transport emissions. Balancing density early helps reconcile material intensity with infrastructure efficiency. Mobility choices matter: districts integrated with rail reduce the need for broad road networks, and that trims pavement and bridge-related embodied carbon.

‍

Infrastructure Geometry

Water, sewer, district energy and power lines follow the spatial geometry that is defined at the start. Fragmented layouts lengthen pipe runs, trenches and material needs. Compact, mixed-use zoning shortens linear infrastructure and cuts embodied carbon.

‍

Lock-in Effects

Once foundations are laid out and utilities are set, carbon-intensive materials are defined for decades. Unlike operational systems, embodied carbon is hard to undo. That's why integrating sustainability KPIs at the concept stage is essential.

‍

Why Reductions Are Cheapest at Concept Stage

Global mitigation pathways, including IPCC scenarios, stress early action to avoid expensive retrofits. In development, design-stage moves like structural optimization, reduced parking, reconfiguring space, all are far cheaper than changing materials or reworking infrastructure after construction starts. Early carbon analysis lets masterplanners compare options before capital is committed. Once structural, financial and regulatory constraints set in, flexibility evaporates. Embedding embodied-carbon scoring in the first iteration makes decarbonization foundational, not corrective.

‍

Scenario-Based Illustrations

Example 1: TOD through density optimization

Let's consider a car-dependent mixed-use district with wide arterials, structured parking, and low-rise sprawl. Early carbon modeling tests a transit-oriented alternative with:

• Narrower road sections,
• No multi-level parking podiums,
• Higher-density mid-rise housing clustered around transit, and
• Shared mobility hubs

‍

This alternative reduces infrastructure kilometres per capita and cuts the concrete tied to parking. By optimizing density and mobility, embodied carbon per square metre and per person falls significantly. Mobility structure becomes a carbon decision as much as a transport one.

‍

Example 2: Switching to low-carbon materials across a district

In another scenario the base plan suggests using reinforced concrete everywhere. An early lifecycle assessment compares that to a materials strategy using:

• Mass timber for mid-rise residential projects,
• Supplementary cementitious materials in concrete mixes,
• Recycled steel, and
• Optimized spans to lower material volume

‍

That change trims upfront embodied emissions without altering land use. By considering it in the very first iteration, structural typologies can be adopted before engineering details are locked-in. Material choices at concept stage often yield outsized carbon benefits compared with late substitutions.

‍

Example 3: Green infrastructure that complements carbon reductions

A third plan weaves green corridors, urban forests and green roofs into zoning. Planting won't erase embodied emissions from concrete and steel, but it creates carbon sinks, cools microclimates and lowers long-term operational demand. Compared to a baseline with minimal greenery, the revised plan shows a stronger whole-life carbon profile. Better walkability and thermal comfort also reduce mobility emissions over time. Landscape systems at district scale support carbon accounting and resilience.

‍

Practical Hurdles to Early-Stage Carbon Scoring

Despite the benefits, early carbon scoring faces real-world challenges.

‍

‍

Data Uncertainty

At concept stage, systems and quantities are assumptions, not specs. That introduces variability in model outputs. Even so, scenario comparisons remain valuable; relative differences typically persist even with uncertain inputs.

‍

Incomplete Material Data

Embodied-carbon databases vary by region. Local supply chains may lack transparent EPDs, which complicates analysis. Standardized benchmarks and conservative assumptions help bridge the gaps.

‍

Regulatory Misalignment

Many jurisdictions still focus on operational energy rather than embodied carbon. That reduces immediate policy pressure for early scoring.

‍

Budget Constraints

Developers sometimes see early carbon analysis as an extra cost. In reality, the incremental expense at concept stage is small compared with the bill for later structural retrofits. Early scoring prevents costly redesigns and supports long-term operational savings.

‍

Stakeholder Resistance

Traditional teams can be wary of carbon-first frameworks. Embedding carbon metrics into existing financial and spatial workflows reduces friction. Far from an added burden, early embodied-carbon scoring is a risk-management and optimization tool.

‍

Strategic Upside of Carbon-First Masterplanning

Adopting a carbon-first approach delivers clear strategic advantages.

‍

Investor Confidence and ESG

Institutional investors increasingly evaluate ESG across urban portfolios. Quantified embodied-carbon performance enhances transparency and investor confidence. Carbon benchmarking strengthens positioning with sustainability-focused funds.

‍

Faster Approvals

Cities moving toward net-zero often ask for climate-impact disclosures. Projects that include early lifecycle assessment typically navigate approvals more smoothly.

‍

Long-Term Asset Value

Low-carbon masterplans reduce exposure to future carbon pricing, tighter performance rules and retrofit mandates. Assets aligned with decarbonization frameworks retain competitive value.

‍

Resilience to Carbon Taxes

As embodied-carbon disclosure becomes mandatory in more places, early integration shields projects from sudden compliance costs.

‍

Competitive Differentiation

Carbon-scored masterplans position developers as climate-forward leaders, improving reputation and stakeholder trust. Carbon-first planning is both stewardship and strategy.

‍

What's Next? Predictive and Carbon-Negative Districts

Looking ahead, embodied-carbon scoring will shift from measurement to predictive optimization.

‍

AI-Driven Carbon Forecasting

AI can model long-term carbon performance across density and infrastructure scenarios, identifying material mixes and spatial configurations that hold up best over time.

‍

Real-Time Carbon Dashboards

Digital twins will enable near-real-time carbon tracking during construction and operation, linking embodied and operational impacts.

‍

Integrated ESG Reporting

Masterplans will increasingly include automated ESG dashboards combining carbon with biodiversity, water and social metrics.

‍

Predictive Material Optimization

AI tools will recommend structural systems based on carbon intensity, availability and lifecycle durability — before procurement is locked in. Pushing toward carbon-negative districts, where sinks exceed embodied emissions, will demand advanced modeling, cross-disciplinary collaboration and early KPI integration. Increasingly, the first design iteration will determine whether a district merely complies with climate rules or leads on them.

‍

FAQs

What is embodied carbon in urban masterplanning?

At the masterplanning level, embodied carbon covers greenhouse-gas emissions tied to materials, infrastructure, transport and construction across a development's lifecycle.

‍

Why start carbon scoring in the first design iteration?

Early choices determine infrastructure geometry, structural systems and density — factors that lock in most lifecycle emissions. Early analysis makes cost-effective optimization possible before financial and material commitments are fixed.

‍

How do sustainability KPIs influence district-scale planning?

KPIs such as kgCO₂e/m² or carbon per capita create measurable targets that steer material selection, mobility structure, density and infrastructure allocation during masterplanning.

‍

What tools are used for embodied-carbon analysis?

Common tools include GIS-based spatial analysis, BIM-integrated lifecycle-assessment software, parametric modeling (Rhino, Grasshopper), digital twins and AI-assisted urban-optimization platforms.

‍

Can early carbon scoring reduce development costs?

Yes. Early carbon benchmarking helps avoid costly retrofits, optimizes material use and reduces redundant infrastructure, often lowering lifecycle costs while improving ESG performance.

‍
